Trusted Partner: Bicycle Wheel Warehouse
Bicycle Wheel Warehouse is designed to offer a new dimension in the online market for enthusiast riders, aiming to meet cyclists’ need for high-quality wheels at affordable prices. We specialize in offering wheels that use component specifications that make sense, rather than wheels assembled from miscellaneous parts.
Our wheels differ from many other wheels available online. All of our wheels are 100% built in-house by hand, checked, and rechecked for proper spoke tension and wheel trueness. Compare our wheels with those offered by other websites that often purchase wheels and parts at close-out auctions from overseas factories and repackage them for sale in the U.S. as quality products.

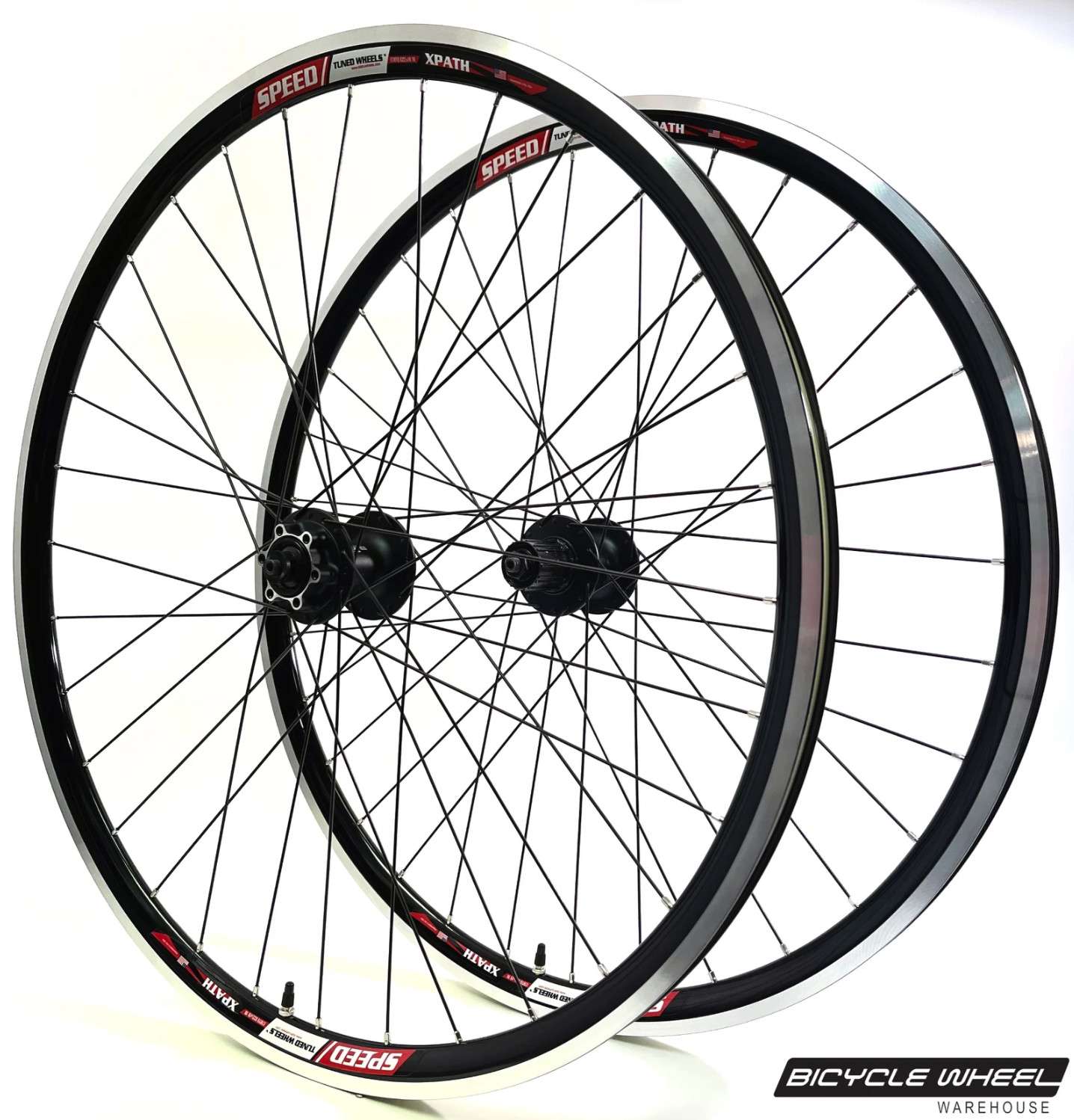

The Speed Tuned X-Path 36HD 700c wheel set is extremely versatile. Strong enough for beat up paths and broken roads, carrying max payloads using a wide range of standard clincher or tubeless road tires, (700×25 – 50mm).
Description:

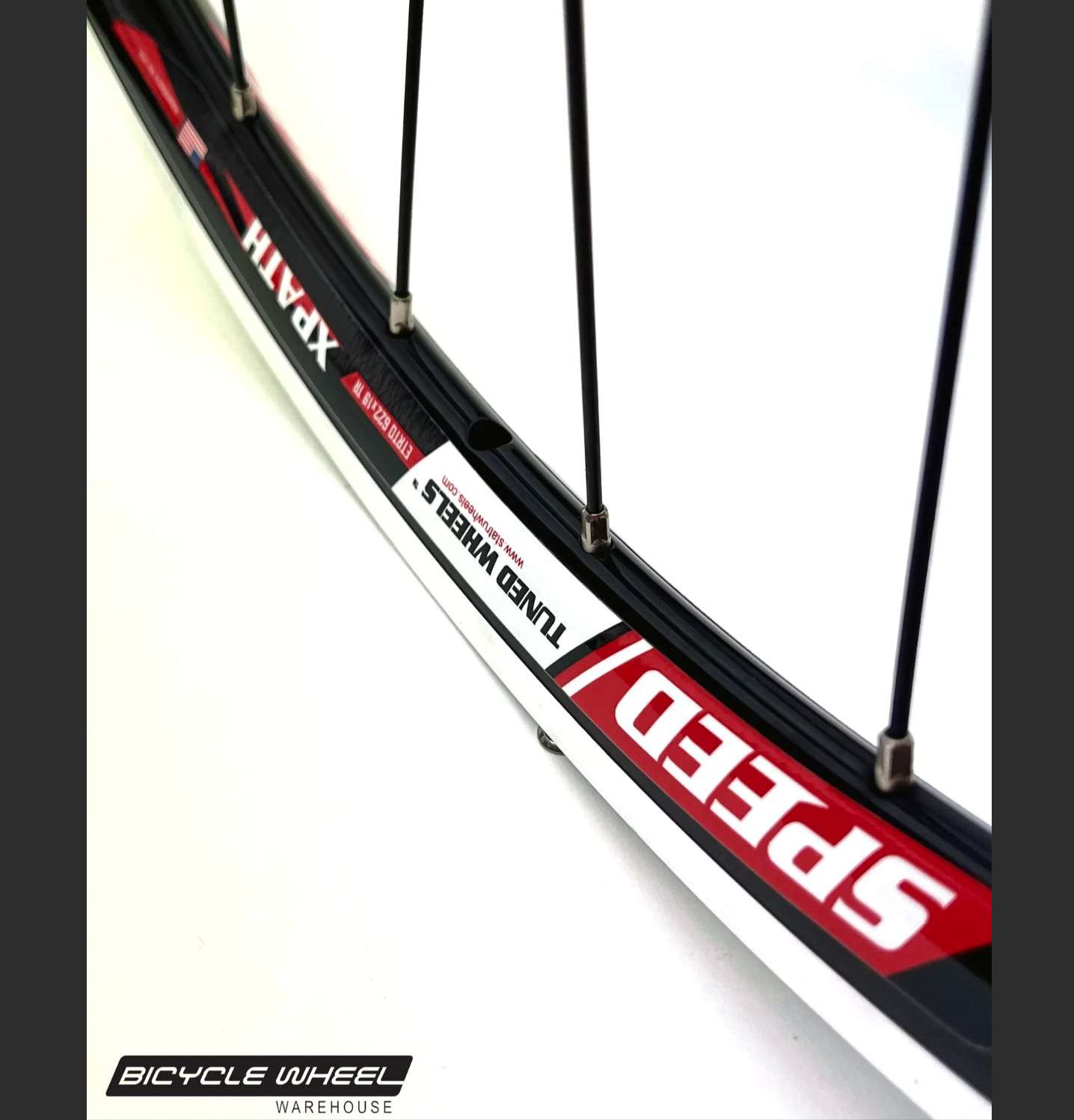

Sweet! A tubeless ready hybrid rim with CNC machined sidewalls for rim brakes, that also really works well with regular clincher tires and tubes, designed for more than road performance or racing. Let’s face it, in the world of tubeless, it’s a disc-o world. The X-Path has a strong 26mm profile, has a 19mm inner, it has a shiny CNC machined sidewall for rim brakes, and weighs in at a respectable 480g. So if you ride in locales with lots of thorns, needles, broken glass, or insert whatever the bane of your personal existence happens to be on your rides, these wheels set up tubeless could be a great way to go.
We are building these Speed Tuned X-Path rims up with your choice (please select) of Shimano loose ball or Speed Tuned sealed bearing hubs, laced three cross front and rear. This lace pattern offers excellent lateral strength while still allowing each wheel to absorb a fair amount of road vibration. Thanks for taking a moment to check out these wheels. If you happen to find a pair on your door step, it just may be one of the best, longest lasting upgrade you ever decide to invest in for your bicycle.
* All listed weights are based on an approximate average, actual weights may vary
*Wheels will ship with QR levers and Velox 16mm cloth rim tape.
Speed Tuned X-Path 36HD Tubeless Ready / Clincher Specs
| 700c | Front Wheel | Rear Wheel | Wheel Weights (approx) |
| Rim Info | Aluminum Alloy Clincher Tubeless Ready, double wall, welded | ||
| ETRTO | 622 x 19 | ||
| Weight | ≈480g average | ≈480g average | |
| Sidewall | CNC machined, rim brake compatible | ||
| Inner Width | 19mm | ||
| Outer Width | 23mm | ||
| Rim Depth | 26mm | ||
| Rim ETRTO | 622 x 19mm | ||
| Rim ERD | 587 (without washers) | ||
| Rim Tape | Tesa Tubeless Rim Tape Installed | ≈ 18 – 35g/wheel (varies based on overlap) | |
| Washers | Built with 3D internal stainless steel washers | ≈4g F, ≈4g R | |
| Valve Type | Presta | ||
| Tire Type | Standard Clincher with inner tube OR Road/MTB Tubeless | ||
| Tire Volumes | 700 x 25mm – 700 x 50mm (sweet spot is 700×30 and 700×38) | ||
| Nipple Info | 12mm Brass Chrome Plated @ ≈ 1g ea | 32H = 32g | |
| Spoke Info | Sapim Leader 2.0mm (14g) Stainless Spokes Black ≈ 6.5g ea | 32H = 208g | |
| Spoke Info Race | Sapim Race 2.0/1.8/2.0 Butted Stainless Spokes Black ≈ 5.65g ea | 32H = 180g | |
| Spoke Count | Front: 36H | Rear: 36H | |
| Spoke Pattern | Front: 3 Cross | Rear: 3 Cross (32H) | |
| Lengths | 284/286mm (36H) | 284/286mm (36H) | |

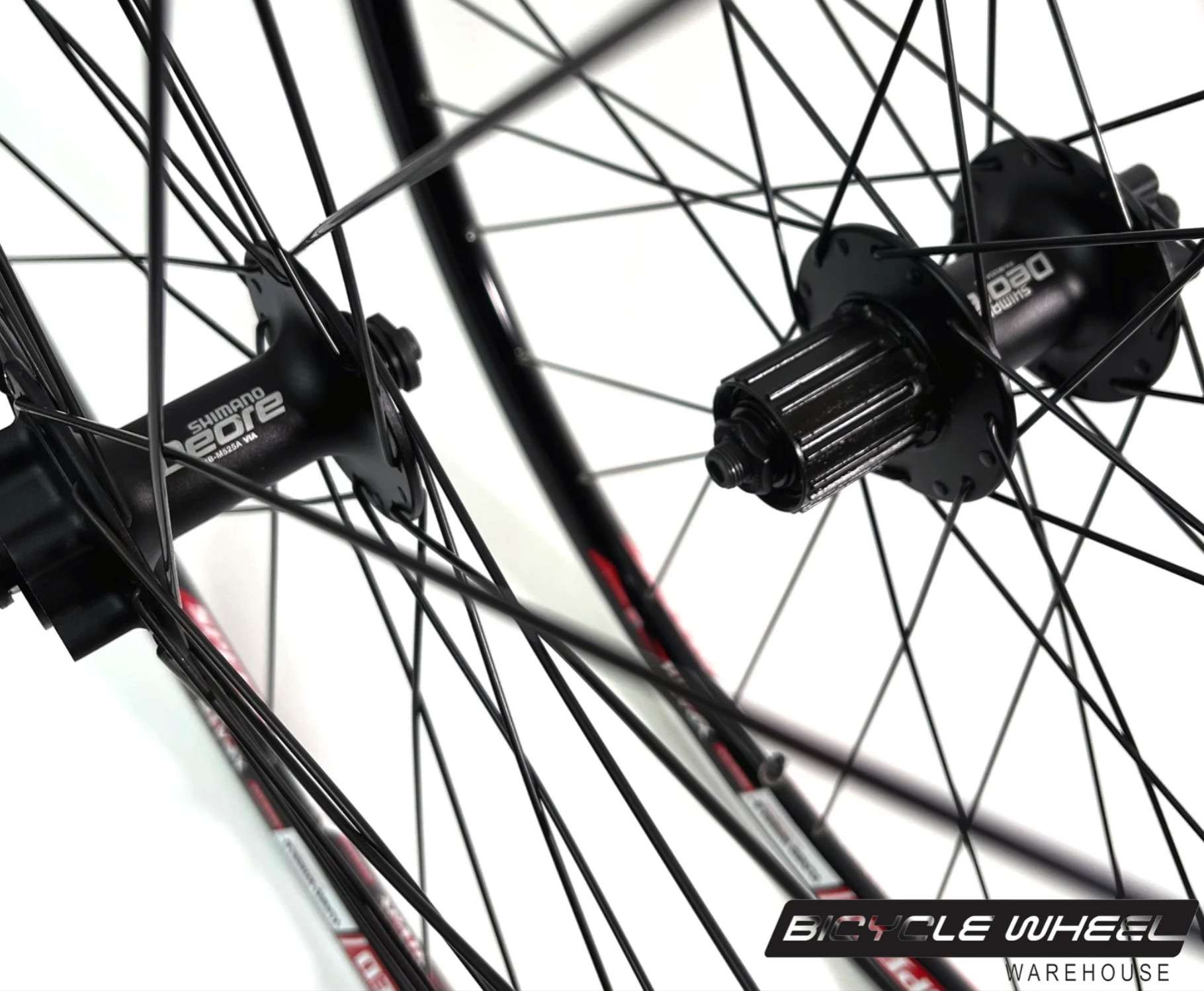

| Hub Info (option) | Shimano Deore HB-M525 | Shimano Deore FH-M525 | |
| Hub Weight | 248g | 428g | 248g F, 428g R |
| Hub Shell | Aluminum Alloy | ||
| Axle Info | QR 9mm x 100mm OLD | QR 10mm x 135mm OLD | |
| Hole Ct | 32H or 36H | 32H or 36H | |
| DriveS PCD | 61 | 61 | |
| DS Ctr to Flange | 21.5 | 19.5 | |
| Non-DriveS PCD | 61 | 61 | |
| NDS Ctr to Flange | 33 | 32 | |
| Axle Material | Steel Alloy | ||
| Bearings | Loose Ball Bearings | ||
| Bearing Size | 3/16″ x 10 | 1/4″ x 9 | |
| Freehub | Shimano/SRAM “Splined” MTB 8/9/10/11 speed | ||
| FH Option 1 | Shimano/SRAM Road 8/9/10 speed | ||
| FH Material | Steel Alloy | ||
Wheel Weights
(without QR’s or rim tape)
| HD w/ Deore 32h | F ≈ 967g | R ≈ 1148g | Set ≈ 2115g |
| HD w/ Deore 36h | F ≈ 997g | R ≈ 1178g | Set ≈ 2175g |
| HD w/ XT -Race | F ≈ 930g | R ≈ 1115g | Set ≈ 2045g |
| HD w/ ST170/300 -Race A | F ≈ 840g | R ≈ 970g | Set ≈ 1810g |
- All options include rim tape and QR levers.
